T Type Image Guide Scope

Product description

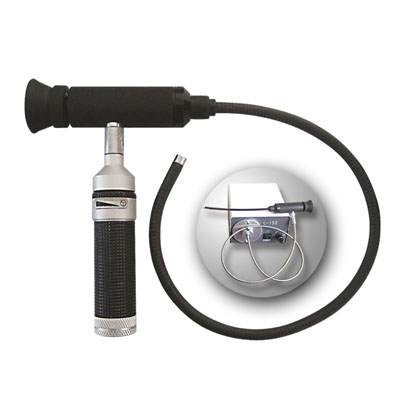

       T Type Image Guide Scope is a kind of new optical instrument composed with fiber optics,precision machinery and electronic technic.It is used the optical fiber by it’s light transfer,image transfer principle and soft characteristic so that it can check the place that our naked eyes can not see.It can check the machine without demolish and additional light source.The only thing you need is the hole to put the insertion tube in,you can get the vision inside.This endoscope can get large and clear image.You can get side view with mirror.We also have a kind of cool light source L-150 for this T type Image Guide Scope to get better light source.It is a effective inspect instrument for aviation,automobile,ship building,electronic,chemical industry,power solution,construction and so on.


      This T Type Image Guide Scope can check the place that our naked eyes can not see.We have the outside diameter(OD) 4mm,6mm,8mm for your option.


It can check the place where our naked eyes can not see.
It is powered by battery to get the light and 35°45°55° for inspection.
Support auto focus,we have the probe length 18 and 36 inch,OD 4,6,
8mm for your option.







  Model

  TIGS-Φ4Φ6

 TIGS-Φ8

  Probe

Probe Material

  PE

 Stainless steel(with PVC outside)

minimum bend radius

  R40mm

Length

  45-500(cm)

  Optical features

Side of view

  55°

Focus

  2cm to infinite(fixed focus)

visual direction

  foresight

 Other features

Waterproof

  IP5(Only for insertion probe)

Working temperature

  -20° 80°(Do not work under high temperature for a long time)





Light source

  light

  5V  1.2A

  power

  2 CR123A Li-Batteries

cold light source(Optional)

  Light

  24V  150W

  Fan

  12V  0.25A

  light fiber

  100cm(The longest length can reach 2m)






 T Type Image Guide Scope 1 unit


Light Source 1 set

Operation manual 1 pcs

Box  1 set

CR
123A Batteries 1 lens cleaner and 2 spare lamp

Optional Sparepart

Mirror   You can get different side view with this mirror.

Magnet    It can absorb the small metal fragment

Cool light Source (Include 1 set main unit ,1 light fiber)









TIGS-4184.5mm (OD) x 18英寸 (Length)

TIGS-4364.5mm (OD) x 36英寸 (Length)

TIGS-6186mm (OD) x 18英寸(Length)

TIGS-6366mm (OD) x 36英寸(Length)

TIGS-8188mm (OD) x 18英寸(Length)

TIGS-8368mm (OD) x 36英寸 (Length)
